Chimney Cowl Installation Mistakes: 25 Common UK Errors
The most damaging chimney cowl installation mistakes usually involve incorrect sizing, restricted airflow, unsuitable fixings or choosing the wrong terminal for the problem. This guide explains how noisy, leaky or smoky installations fail and what should be checked before a cowl is fitted, adjusted or replaced.
Important roof-access and appliance-safety warning
Inspecting or correcting chimney cowl installation mistakes may require access to the roof and chimney stack. A leaning ladder alone is not normally a suitable working platform. Access should be planned using appropriate equipment. Read the Health and Safety Executive guidance on safe roof work . Gas terminals must be assessed by a suitably qualified Gas Safe registered engineer.
Why chimney cowl installation mistakes matter
A chimney terminal sits where combustion, building fabric and external weather conditions meet. A small error at the top of the stack can affect the whole flue.
Smoke and draught problems
A restrictive or unsuitable cowl can increase resistance within the chimney. The result may be weak draught, slow smoke clearance or smoke entering the room.
Rain and damp
A bird guard does not necessarily provide meaningful rain protection. Water may also be entering through defective flaunching, masonry or flashing rather than the chimney opening.
Movement and noise
Loose straps, off-centre clamps and thin metal sections can create rattling, humming or movement during strong winds.
Core principle: the correct terminal should solve the identified problem without restricting the flue, damaging the chimney pot or creating a maintenance problem.
The 25 most common chimney cowl installation mistakes
These are the faults most likely to cause repeat rain entry, wind noise, poor draught, premature corrosion or an insecure terminal.
Using an undersized cap
A shallow or narrow cap can reduce the effective discharge route. This is particularly problematic on open fires and larger flues.
Better approach: choose a terminal with sufficient canopy clearance and an outlet arrangement compatible with the flue.
Choosing the wrong cowl for the symptom
Rain, downdraught, bird entry and liner termination are different problems. One generic product will not necessarily solve all of them.
Better approach: diagnose the issue before selecting the terminal.
Using mesh that is too restrictive
Fine or heavily sooted mesh reduces open area and may increase flue resistance.
Better approach: use a compatible guard that remains accessible for regular cleaning.
Positioning a strap on the pot rim
A fixing band seated on a curved lip may not grip evenly and can work loose during storms.
Better approach: position the strap on a sound, straight-sided section of the pot.
Fitting the cowl out of level
An uneven terminal may move, rattle or create unbalanced loading on the chimney pot.
Better approach: position the cowl centrally and level before tightening.
Ignoring coastal exposure
Salt-laden air can accelerate corrosion of lightly protected metals, fasteners and damaged coatings.
Better approach: consider stainless steel and compatible corrosion-resistant fixings.
Assuming the chimney pot is perfectly round
Older clay pots may be oval, tapered or irregular. One measurement can lead to an unsuitable clamp range.
Better approach: measure in more than one direction and record the usable fixing height.
Insufficient cap clearance
A canopy positioned too close to the outlet can create a narrow discharge slot and increase resistance.
Better approach: verify the manufacturer’s outlet geometry and free-area provision.
Using a bird guard to solve downdraught
A basic guard excludes birds and debris but may do little to control adverse wind pressure.
Better approach: use an anti-downdraught design where wind is the diagnosed cause.
Poor flexible-liner termination
A liner left unsupported or loosely connected can become displaced and may allow water to enter around the termination.
Better approach: use compatible liner-support and cowl components.

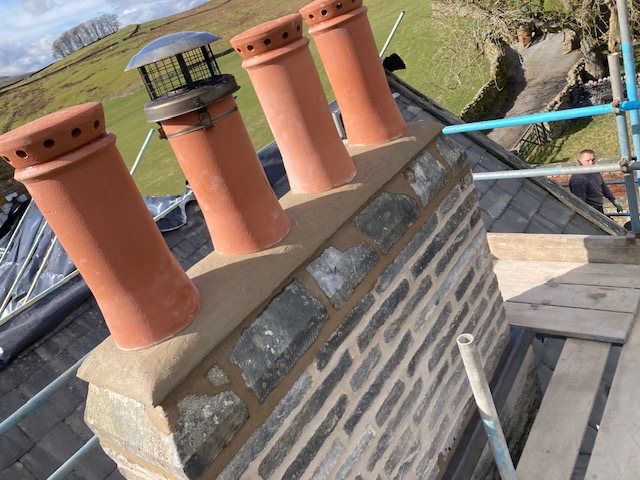

Restricting a multi-flue chimney top
Large or poorly spaced terminals can interfere with neighbouring pots and may contribute to cross-flow between flues.
Better approach: preserve spacing and assess each working flue separately.
Failing to inspect after severe weather
Storm movement can loosen fixings, distort mesh or expose weaknesses in the chimney pot.
Better approach: arrange a visual check after severe weather and inspect closely during sweeping.
Using lightweight sections on exposed sites
Thin metal components may vibrate or resonate where the chimney is subject to strong and variable winds.
Better approach: select a robust terminal suited to the site exposure.
Sealing a redundant flue completely
A disused chimney that is closed without ventilation may retain moisture and develop stale or damp odours.
Better approach: use a ventilating cap and maintain low-level airflow where appropriate.
Overtightening onto fragile clay
Excessive clamp pressure can crack a pot or worsen existing defects.
Better approach: tighten progressively and stop if the pot condition is doubtful.
Underestimating local turbulence
Nearby ridges, extensions, trees and taller buildings can create wind effects that vary by direction.
Better approach: diagnose the site before selecting an anti-downdraught or rotating cowl.
Combining incompatible metals
Dissimilar metals and damaged protective finishes can increase corrosion risk.
Better approach: use compatible fasteners and maintain damaged coatings.
Blaming the cowl for every cold start
A cold chimney can initially resist upward flow even where the cowl is suitable.
Better approach: assess room air supply, flue condition and lighting practice. A clean, fast-lighting product such as Hot Box Firestarter may help establish heat quickly.
Neglecting spark-arrestor mesh
Fine mesh can accumulate soot and deposits, progressively reducing the outlet area.
Better approach: establish a cleaning regime appropriate to the appliance and fuel.
Adding accessories that restrict the outlet
Retrofitted mesh, plates or improvised rain covers can obstruct a previously suitable terminal.
Better approach: use a purpose-designed combined product rather than improvised additions.
Using the wrong strap range
A strap at the limit of its adjustment may not clamp evenly and can distort or slip.
Better approach: select a cowl whose stated fixing range comfortably covers the measured pot.
Mismatching the liner diameter
A liner cowl or connector must match the nominal flue size and system arrangement.
Better approach: verify whether the liner is 125mm, 150mm or another specified diameter.
Leaving damaged coatings untreated
Scratched or chipped finishes may expose the underlying metal and allow corrosion to spread.
Better approach: follow the manufacturer’s maintenance and repair instructions.
Ignoring neighbouring chimney pots
Large terminals can clash physically or disturb the discharge from adjacent flues.
Better approach: check spacing, height and clear discharge routes before installation.
Ordering before completing basic checks
Buying on appearance alone often results in the wrong product, fixing or fuel rating.
Better approach: start with the Cowl Finder and Cowl Guide .
How chimney cowl installation mistakes restrict airflow
The terminal must allow combustion products to leave the chimney without unnecessary obstruction. The effective outlet depends on the complete geometry of the cowl, not just its nominal diameter.
What reduces effective outlet area?
- Low canopy clearance above the flue opening.
- Fine or heavily contaminated mesh.
- Closely spaced internal baffles.
- An undersized connector or spigot.
- Improvised plates and accessories.
Possible symptoms
- Slow smoke clearance.
- Smoke entering the room.
- Whistling or humming at the terminal.
- Poor appliance response.
- Rapid soot accumulation around mesh.
Do not rely on a daylight test alone. Being able to see light through a cowl does not confirm that its effective outlet area or fuel compatibility is adequate. Use the manufacturer’s technical information and obtain professional assessment where performance is uncertain.
Avoiding cowl-selection mistakes
One of the most common chimney cowl installation mistakes is expecting one type of terminal to solve every chimney complaint.
| Primary problem | Typical cowl category | What it is intended to do | Important limitation |
|---|---|---|---|
| Direct rain entry | Rain cap or weathering cowl | Reduce rain entering through the open chimney pot | Will not repair defective masonry, flashing or flaunching |
| Wind-related smoke blowback | Anti-downdraught cowl | Reduce adverse pressure and turbulence at the terminal | Will not correct every cause of poor draught |
| Birds and nesting material | Bird guard cowl | Prevent larger wildlife and debris entering | Mesh must suit the appliance and remain cleanable |
| Flexible liner termination | Liner cowl or pot-hanger system | Support, connect and weather the liner termination | Must match the liner and installation system |
| Redundant chimney ventilation | Ventilating cap or capper | Exclude rain and debris while allowing airflow | Low-level ventilation may also be required |
| Variable wind exposure | Rotating or specialist terminal | Respond to changing wind direction or pressure | Moving parts require inspection and maintenance |
Fixing mistakes: straps, clamps, plates and pot hangers
The fixing should be selected for the chimney pot, cowl and flue arrangement. Adhesive, silicone or fire cement should not replace the designed mechanical fixing.
Strap and band fixings
Strap-fixed cowls work well on suitable clay pots. The band should sit on a sound section of the pot and remain within its stated adjustment range.
Common errors include fixing over a curved rim, overtightening and using the wrong band size.
Clamp and leg fixings
Several screws or legs should be tightened progressively and evenly so the terminal remains central.
One fixing fully tightened before the others can pull the cowl off-centre and create point loading.
Plate and proprietary fixings
Some terminals fix to a plate, masonry background or proprietary flue component. The substrate and fasteners must be suitable.
Do not drill a fragile chimney pot or improvise a connection without an appropriate installation detail.
Read the complete chimney cowl fixings guide before selecting a strap, clamp, liner or plate-mounted arrangement.
Flexible liner and pot-hanger mistakes
A cowl on a lined chimney forms part of the complete termination system. It should support, connect and protect the liner rather than simply sit over the chimney pot.
Common liner termination errors
- Failing to confirm the liner diameter.
- Leaving the liner unsupported.
- Using incompatible top components.
- Allowing water to enter around the liner.
- Using an improvised reduction or connector.
- Leaving the liner exposed above the chimney pot.
A suitable termination may include:
- A pot-hanger liner cowl.
- A top plate and top sleeve.
- A liner-support clamp.
- A compatible rain cap.
- A manufacturer-approved connection.
- Correct weathering around the chimney opening.
Material and corrosion mistakes
The correct material depends on the fuel, flue gases, site exposure and maintenance expectations.
Stainless steel
Stainless steel is commonly selected for durability and corrosion resistance. It is particularly useful for coastal and highly exposed sites.
The steel grade, fixings and connected flue system must still be suitable for the application.
Galvanised steel
Galvanised cowls can provide economical protection in less aggressive environments.
Damaged coatings, coastal exposure and corrosive flue gases can shorten service life.
Powder-coated finishes
Powder coating provides colour and additional surface protection. Chips and abrasions should not be ignored.
Use maintenance products and repair methods compatible with the original finish.
See our detailed guide to chimney cowl materials and finishes for inland, coastal and exposed installations.
Wind and site-exposure mistakes
Wind does not pass evenly over a building. Roof ridges, extensions, trees and neighbouring properties create changing pressure zones around the chimney.
Urban and suburban properties
Nearby roofs and taller buildings can create directional turbulence. Problems may appear only when the wind approaches from one direction.
Open rural sites
Exposed chimneys experience greater wind loading. The cowl, fixing and chimney pot must all be suitable for the location.
Coastal sites
Salt exposure can accelerate corrosion and wind-driven rain can test both the terminal and chimney masonry.
Properties near trees
Trees can increase leaf debris and nesting activity. They can also alter local airflow around the roof.
Persistent smoke blowback should not automatically be blamed on the cowl. Poor room ventilation, extractor fans, a blocked flue, chimney height and surrounding structures may also contribute.
Maintenance mistakes after installation
A chimney cowl is exposed to soot, heat, rain, frost, wind and corrosion. A suitable product can still fail if it is never inspected or cleaned.
During routine chimney sweeping
- Check that the terminal remains clear.
- Inspect mesh for soot and tar deposits.
- Check accessible straps and clamps.
- Look for movement, tilting or distortion.
- Inspect the chimney pot for cracking.
- Check rotating parts for free movement.
After storms or unusual noise
- Check whether the cowl has shifted.
- Listen for rattling, humming or vibration.
- Look for missing fasteners.
- Inspect for impact or corrosion damage.
- Arrange closer inspection where movement is suspected.
- Do not continue using an unsafe installation.
A professional chimney sweep and stove service can help identify blocked mesh, insecure terminals and flue-maintenance issues before they become larger faults.
Chimney cowl installation mistakes troubleshooting table
Use this table as a starting point. The complete chimney and appliance should be assessed where safety or performance is uncertain.
| Observed symptom | Possible installation fault | Other possible causes | Recommended action |
|---|---|---|---|
| Smoke enters the room | Restricted cowl, wrong terminal or blocked mesh | Cold flue, blockage, extractor fan or insufficient air | Stop use where unsafe and arrange a full flue assessment |
| Cowl rattles in wind | Loose strap, uneven fixing or moving component | Cracked pot or damaged mechanism | Arrange close inspection and correct the fixing |
| Rain still enters | Wrong cowl type or inadequate weathering | Flaunching, pointing, masonry or flashing defects | Identify the true water-entry route before replacing the cowl |
| Whistling or humming | Narrow outlet gap, vibrating metal or clogged mesh | Wind interaction or resonance | Check free area, alignment, material and site exposure |
| Birds still enter | Damaged guard or unsuitable aperture | Another open flue or access route | Identify the entry point and fit a compatible guard |
| Liner remains exposed | Missing support or unsuitable top connection | Incomplete installation system | Install compatible liner-support and termination components |
How common installation mistakes present in practice
These scenarios illustrate why diagnosis should come before adjustment or replacement.
Wind puffing on a suburban ridge
A basic rain cap is fitted where the real issue is directional turbulence from neighbouring roofs.
Likely remedy: assess the full flue and site, then consider a suitable anti-downdraught terminal if wind pressure is confirmed.
Bird guard beneath nearby trees
The correct guard is fitted but never cleaned. Leaves, soot and nesting debris gradually reduce the opening.
Likely remedy: clean the terminal and establish an inspection schedule.
Coastal cowl develops rust and noise
A lightly protected steel cowl is installed on an exposed coastal stack. Corrosion develops around fasteners and thin panels vibrate.
Likely remedy: replace with a more suitable corrosion-resistant terminal and compatible fixings.
Lined stove with poor termination
The flexible liner is not properly supported or weathered at the chimney pot.
Likely remedy: install the correct liner-support, pot-hanger or top-plate system.
Redundant flue develops damp smells
The chimney has been sealed at the top without maintaining ventilation.
Likely remedy: assess the flue and provide suitable high- and low-level ventilation.
Smoke problem appears after fitting
A previously functioning chimney receives a small decorative cap with restrictive mesh.
Likely remedy: stop using the appliance where unsafe and assess the terminal’s suitability and effective outlet.
Final chimney cowl installation inspection checklist
Use this checklist to identify installation mistakes before the chimney or connected appliance is returned to use.
Product and compatibility
- The cowl suits the actual chimney problem.
- The product is compatible with the fuel and appliance.
- The pot or liner dimensions have been verified.
- The terminal suits the chimney or flue type.
- Neighbouring flues remain unobstructed.
Fixing and performance
- The chimney pot is sound and stable.
- The cowl is central and level.
- Fixings are secure and evenly tightened.
- The discharge route remains clear.
- The terminal can be inspected and maintained.
Professional standard: a suitable cowl should be compatible, mechanically secure, correctly positioned, capable of maintaining safe discharge and accessible for future inspection.
Chimney cowl installation mistakes FAQs
Can chimney cowl installation mistakes cause smoke to enter a room?
Yes. A restrictive, blocked or unsuitable terminal can increase resistance and contribute to smoke spillage. Other possible causes include insufficient combustion air, extractor fans, a cold flue, blockages and inadequate chimney height.
What is the most common chimney cowl installation mistake?
Choosing the product before diagnosing the problem is one of the most common errors. Rain entry, bird nesting, wind-related downdraught and flexible-liner termination require different solutions.
How tight should a chimney cowl clamp be?
The clamp should prevent lifting, twisting and movement without cracking the pot or distorting the cowl. Where several fixings are used, tighten them progressively and evenly.
Should a cowl be secured with sealant or fire cement?
Sealant or fire cement should not replace the specified mechanical fixing. Only use a gasket or jointing material where the manufacturer or flue-system design specifically requires it.
Can a bird guard make chimney draught worse?
A suitable and clean bird guard should maintain an adequate discharge route. However, unsuitable mesh, soot deposits or an undersized design can restrict the terminal and affect performance.
Why does a chimney cowl whistle?
Whistling may be caused by a narrow outlet gap, clogged mesh, wind interaction or resonance within lightweight metal sections. The cowl should be inspected for blockage, damage, alignment and suitability.
How often should a chimney cowl be inspected?
Inspect the cowl during routine chimney sweeping and after unusually severe weather. Mesh guards, rotating terminals and exposed fixings may require more frequent attention.
Which cowl should be used with a flexible liner?
Use a terminal designed for the liner diameter and installation system. Depending on the chimney, the arrangement may include a pot hanger, top plate, top sleeve, support clamp and compatible cowl.
Can a cowl solve every downdraught problem?
No. An anti-downdraught cowl may help where wind pressure at the terminal is the cause. Poor room ventilation, extractor fans, chimney height, blockages and surrounding structures should also be considered.
Who can correct a faulty chimney cowl installation?
Depending on the chimney and appliance, the work may be completed by a competent chimney sweep, stove installer, roofing contractor, chimney specialist or appropriately registered heating engineer. The Stove Guys can help connect customers with chimney and stove professionals.
Choose the correct chimney cowl before installation
Measure the chimney, identify the problem and verify the fuel and flue arrangement before ordering. The correct product and fixing can prevent repeat rain, smoke, noise and maintenance problems.
